WCF and MSMQ

Summary

Queues Overview

Basic Scenarios

WCF provides support for queuing by using Microsoft Message Queuing (MSMQ) as a transport. WCF and MSMQ enable the following scenarios:

Queuing Concepts

There is one important factor that differentiates between using a queued transport versus a direct transport such as TCP or HTTP and that is isolation between the service, the client and the transport. The nature of direct transports using TCP and HTTP is such that if the service or the client were to stop functioning, or if the network itself were to fail, communication stops altogether. The service, the client and the network must be up and running at the same time for the application to work. Queued transports, on the other hand, provide isolation such that if the service or client were to fail or if communication links between them were to fail, the client and service can continue to function.

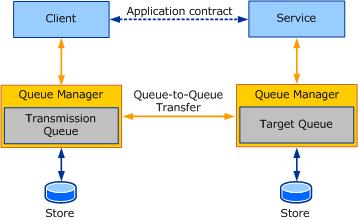

Queues capture and deliver messages exchanged between the communicating parties. Queues are typically backed by some kind of a store which can be volatile or durable. Queues store messages from a client on behalf of a service, and later forward these messages to the service. The indirection provided by queues ensures isolation of failure by either party, thus making it the preferred communication mechanism for high availability systems and disconnected services. The indirection comes with the cost of high latency. Latency is the time delay between the time the client sends a message and the time it is received by the service. This means that once a message has been sent, you don't know when that message may be processed. Figure below illustrates a simple conceptual model of queued communication:



The queue is really a distributed concept. In other words, a queue may be local to either party or remote to both parties. Typically, the queue is local to the service. In this configuration, the client cannot depend on connectivity to the remote queue to be constantly available. Similarly, the queue must be available independent of the availability of the service reading from the queue. A Queue Manager manages a collection of queues. It is responsible for accepting messages sent to its queues from other queue managers. It is also responsible for managing connectivity to remote queues and transferring messages to those remote queues. To ensure availability of queues in spite of client or service application failures, the queue manager is typically run as an external service.

When a client sends a message to a queue, it addresses the message to the Target Queue, which is the queue managed by the service's Queue Manager. For the client message to ultimately get to the Target queue, the Queue Manager on the client, sends the message to a Transmission (or outgoing) Queue. The Transmission Queue is a queue on the client side Queue Manager that stores messages for transmission to the Target Queue. The Queue Manager then finds a path to the Queue Manager that owns the Target Queue and transfers the message to it. To ensure reliable communication, the Queue Managers implement some kind of a reliable transfer protocol to ensure there is no data loss. The destination Queue Manager accepts messages addressed to the Target Queues it owns and stores the messages. The service makes requests to read from the Target Queue, at which time, the queue manager then delivers the message to the destination application. The following figure illustrates the communication between the 4 parties.


The Queue Manager provides the required isolation such that the sender and receiver can independently fail without affecting actual communication. The benefit of extra indirection provided by queues also enables multiple application instances to read from the same queue, thus farming work among the nodes to achieve higher throughput. Therefore it is not uncommon to see queues being used to achieve higher scale and throughput requirements

Queues and Transactions

In transactional messaging, messages can be sent to the queue and received from the queue under a transaction. Thus, if a message was sent in a transaction and the transaction was rolled back, then, the outcome is as if the message was never sent to the queue. Similarly if a message was received in a transaction and the transaction was rolled back, then, the outcome is as if the message was never received. The message remains in the queue to be read.

Because of high latency, when we send a message we have no way of knowing how long it will take to reach its Target Queue, nor do we know how long it will take for the service to process the message. Because of this you don't want a single transaction to be used to send a message, receive the message, and then process the message. Doing this would create a transaction that would not be committed for an indeterminate amount of time. When a client and service communicate through a queue using a transaction there will be two transactions involved: one on the client's side and one on the service's side.

  1. Client-side transaction will do some processing and send the message to the service. Outcome is as follows:

  2. Service-side will read and process message. Outcome is as follows:

Asynchronous communication using queues

Queues provide an asynchronous means of communication. Messages may remain in the queue for a far longer time than the application intended. To avoid this, the application can specify a Time To Live value on the message. This value specifies how long the message should remain in the Transmission Queue. If this time value is exceeded, and the message still has not been sent to the Target Queue the message can be transferred to a Dead Letter Queue.

When the sender sends a message, the return from the send operation implies that the message only made it to the Transmission Queue on the sender. As such, if there is a failure in getting the message to the Target Queue, the sending application cannot know about it immediately. To take note of such failures, the failed message is transferred to a Dead Letter Queue.

Any error, such as messages failing to reach the Target Queue or the message's Time To Live expired, must be processed separately. It is not uncommon, therefore, for queued applications to write 2 sets of logic:

Dead Letter & Poison Message Queue Programming

Dead letter queues contain messages that failed to reach the Target Queue for various reasons. The reasons may range from expired messages to connectivity issues forbidding transfer of the message to the Target Queue.  Typically there is a Dead Letter Queue that is system wide that an application can read messages from and determine what went wrong and take appropriate action such as correcting the errors and sending the message again or simply taking note of it.

After a message has made it to the Target Queue, the service may fail to process the message repeatedly. For example, an application reading a message from the queue under a transaction and updating a database may find that the database connection is temporarily disconnected. In this case, the transaction would be rolled back, and a new transaction would be created and the message would be read from the queue again. A 2nd attempt may succeed or fail. In some cases, depending on the cause of the error, the message may fail delivery to the application repeatedly. In this case, the message is deemed as poison. Such messages are moved to a Poison Queue which can be read by a poison handling application.

WCF and Queuing

WCF allows disconnected communication between client and service via queued calls. In this pattern, the client posts a message to a queue and the service processes the message at a later time. Such interaction is quite different from the typical request/response pattern, and enables other possibilities such as load-balancing, improved availability and, compensating work, to name just a few.

WCF provides support for queued calls via the NetMsmqBinding binding. Recall that a binding describes how communication will take place: instead of transporting a message over TCP or HTTP to a live service, WCF transports the message to an MSMQ queue. Since the interaction with MSMQ is encapsulated within the binding, there is nothing in the service or client invocation code that indicates that the call is queued. The service and client code look like any other WCF client and service.

There is no direct mapping between MSMQ and WCF messages. Instead, the contract session mode determines how MSMQ and WCF messages map as follows:

There are a few key concepts relating to how queued calls are used with WCF. Refer to the following diagram:

  1. The client proxy is configured to use NetMsmqBinding. The client does not send WCF messages to any particular service. Instead, the calls are converted into MSMQ messages and are posted to the queue specified in the endpoint's address.


  2. One the service side, the host installs a queue listener. The queue listener detects if there are messages in the queue, dequeues any existing messages, and then invokes the appropriate service instance as if a call from a client was being processed.


  3. If the host is offline, messages will simply be pending in the queue. The next time the host is up, messages will be forwarded to the service.


  4. A queued call cannot possible return any meaningful values because no service logic in invoked at the time the message is dispatched to the queue. A call may even be processed only after the client has shut down. Similarly, a call cannot return to the client any service-side exceptions as there might not be a client to process the exception.


  5. Queued calls are asynchronous from the client's perspective. The client is only blocked for the briefest of time it takes to queue up the message. All the client sees and interacts with is the queue, and not a service endpoint. Calls are therefore, asynchronous and disconnected. Calls will executed when the service reads the queue at some time in the future.

There are some caveats in WCF queued binding:

NetMsmqBinding binding

The NetMsmqBinding is the binding provided in WCF for two WCF endpoints to communicate using MSMQ. The binding therefore, exposes specific properties that are MSMQ-specific. The NetMsmqBinding is a compact feature designed with the optimal set of features that the majority of customers would find sufficient.

The NetMsmqBinding containsthe core queuing concepts discussed thus far in the form of properties on the bindings. These properties in turn are used to communicate to MSMQ how the messages get transferred and delivered.

ExactlyOnce and Durable properties

ExactlyOnce and Durable properties affect how messages are transferred between queues:

For ExactlyOnce reliable transfer, MSMQ requires the queue to be transactional. Also MSMQ requires a transaction to read from a transactional queue. As such, when you use the NetMsmqBinding, please keep in mind that a transaction is required to send or receive messages when ExactlyOnce is set to true. Similarly, MSMQ requires the queue to be nontransactional for best-effort assurances, such as when ExactlyOnce is false and for volatile messaging. Thus, when setting ExactlyOnce to false or durable to false, you cannot send or receive using a transaction.

Note: A simple rule of thumb is if ExactlyOnce is true, use a transactional queue; otherwise, use a nontransactional queue.

Dead-Letter Queue properties

There are two properties of interest in the MSMQ binding:

Poison-Message Handling properties

When the service reads messages from the target queue under a transaction, the service may fail processing of the message for various reasons. The message would then be put back into the queue to be read again. To deal with messages that fail repeatedly, a set of poison-message handling properties can be configured in the binding. There are four properties of interest: ReceiveRetryCount, MaxRetryCycles, RetryCycleDelay, and ReceiveErrorHandling. These properties are discussed in more detail in MSDN.

Endpoints and Addressing

For A WCF client to send the message to its service, the client addresses the message to the Target Queue. For the Service to read messages from the Target queue, it sets its listen address to the Target Queue. Addressing in WCF is URI-based while Message Queuing (MSMQ) queue names are not URI-based. It is therefore essential to understand how to address queues created in Message Queuing using WCF.

Message Queuing has the concept of path names and format names that are used to identify a queue. Path names specify a host name and a QueueName. Optionally, there could be a Private$ between the host name and the QueueName, to indicate a private queue that is not published in the Active Directory.

NetMsmqBinding and Service Addressing

WCF addressing is URI-based. Moreover, when addressing a message to a service, the scheme in the URI is chosen based on the transport used for communication. Each transport in WCF has a unique scheme. The scheme must reflect the nature of transport used for communication. For example, net.tcp, net.pipe, HTTP, and so on.

The Message Queuing queued transport in WCF exposes a scheme. Any message addressed using the net.msmq scheme would be sent using the NetMsmqBinding over the Message Queuing queued transport channel. The addressing of a queue in WCF is based on the following pattern:

net.msmq: // <host-name> / [private/] <queue-name>

where:

Example1 To address a private queue PurchaseOrders hosted on machine abc atadatum.com, the URI would be net.msmq://abc.adatum.com/private/PurchaseOrders.
Example2: To address a public queue AccountsPayable hosted on machine def atadatum.com, the URI would be net.msmq://def.adatum.com/AccountsPayable.

The queue address is used as the Listen URI by the Listener to read messages from. In other words, the queue address is equivalent to the listen port of TCP socket.

An endpoint that reads from a queue must specify the address of the queue using the same scheme specified previously when opening the ServiceHost. For examples, see NetMsmqBinding Samples and Message Queuing Integration Binding Samples.

Reading messages from the dead-letter queue or the poison-message queue

When using a custom dead-letter queue, note that the dead-letter queue must reside on the local machine. As such, the URI for the dead-letter queue is restricted to the form:

net.msmq: //localhost/ [private/] <custom-dead-letter-queue-name>.

A WCF service will verify that all messages it receives were indeed addressed to the particular queue it is listening on. If the message’s destination queue does not match the queue it is found in, the service will not process the message. This is an issue that services listening to a dead-letter queue need to address – since any message in the dead-letter queue was meant to be delivered elsewhere. To read messages from a dead-letter queue, or from a poison queue, a ServiceBehavior with the Any parameter must be used.

Grouping Queued Messages in a Session

Recall that WCF uses the concept of a session to group a set of related messages together for processing by a single receiving application. WCF messages that are part of the same session must be part of the same transaction - if one message fails to process, the entire session will be rolled back. Note that The Time To Live (TTL) property set on a queued binding configured for sessions will be applied to the session as a whole. If only some of the messages in the session are sent before the TTL expires, the entire session will be placed in the dead-letter queue.

Grouping messages might be helpful in implementing report-processing applications as a WCF service. For example, a client may wish to run a few reports. For each report, the client may call the service, resulting in a separate message being sent. Grouping all requests for a single request greatly simplifies implementation of such an application. The client application would send all reports for a single report-run in a session. When the service processes the all reports, it processes the entire session at once.

Typically the code would look like this:


[ServiceBehavior(InstanceContextMode=InstanceContextMode.PerSession)]
public class IReportRunnerService : IReportRunner
{
    [OperationBehavior(TransactionScopeRequired = true, TransactionAutoComplete = false)]
    public void StartReportRunner(int nClientID)
    { /* ... */ }

    [OperationBehavior(TransactionScopeRequired = true, TransactionAutoComplete = false)]
    public void AddReport(string reportname )
    { /* ... */ }

    [OperationBehavior(TransactionScopeRequired = true, TransactionAutoComplete = true)]
    public void EndReportRunner()
    { /* ... */ }
}

Example 1

The following example shows the basics of using WCF with NetMsmqBinding binding.

Service

The service-side consists of three projects:

Interfaces project

// Recall that any contract exposed by NetMsmqBinding can only have one-way
// operations.
//
// SessionMode is Required because some operations (i.e.,
// ProcessBatchReport) within this interface have their behavior set to
// TransactionAutoComplete=false. This effectively means that another method
// (i.e., FinishProcessBatchReport) must be called to complete the transactions.
// And that is why a session is required.
//
// If SessionMode was not set to Required, the following exception is thrown:
// The operation 'ProcessBatchReport' on contract 'IQueuedReports' is configured
// with TransactionAutoComplete set to false but SessionMode is not set to
// Required. TransactionAutoComplete set to false requires SessionMode.Required.
[ServiceContract(SessionMode = SessionMode.Required)]
public interface IQueuedReports
{
    // Transactional method. Each call to ProcessReport will run and commit a
    // transaction
    [OperationContract(IsOneWay = true)]
    void ProcessReport(string strReportName);

    // The following two methods are used to group reports within a single
    // transaction. See section 'Grouping Queued Messages in a Session'
    [OperationContract(IsOneWay = true)]
    void ProcessBatchReport(string strReportName);

    [OperationContract(IsOneWay = true)]
    void FinishProcessBatchReport();
}

// Recall that any contract exposed by NetMsmqBinding can only have one-way Operations
//
// Note: If SessionMode is set to required, then client code under OnRunNonTransactionalReport
// will throw the following exception: "A transaction was not found in Transaction.Current but
// one is required for this operation. The channel cannot be opened. Ensure this operation is
// being called within a transaction scope"
[ServiceContract]
public interface IQueuedReportsNT
{
    // Non-transactional method
    [OperationContract(IsOneWay = true)]
    void ProcessReportNonTran(string strReportName);
}

Implementation Project

// QueuedReportImpl.cs
// Recall that a session is a way of correlating a set of messages exchanged between
// two or more endpoints. The concept of session always comes hand-in-hand with
// InstanceContext, which is an object used by WCF to manage the association between
// the channel and the user-defined service object. We use an InstanceContextMode
// in the service object's behaviour to specify a lifetime for the InstanceContext
// object. In other words, InstanceContextMode determines the lifetime of the service
// object (percall, perssion, singleton)
//
// Note that InstanceContextMode.PerSession is requried, otherwise, the following
// exception is thrown: "The operation 'ProcessBatchReport' on contract 'IQueuedReports'
// is configured with TransactionAutoComplete set to false and the InstanceContextMode
// is not set to PerSession. TransactionAutoComplete set to false requires the use of
// InstanceContextMode.PerSession."
[ServiceBehavior(InstanceContextMode=InstanceContextMode.PerSession,
                 ConcurrencyMode=ConcurrencyMode.Single)]
public class QueuedReportImpl : Interfaces.IQueuedReports
{
    public QueuedReportImpl()
    {
        // Retrive session ID. This constructor allows us to note whenever a new session
        // is created
        string strID = OperationContext.Current.SessionId ?? "None";
        Trace.WriteLine("\nQueuedReportImpl constructor. ID: " + strID);
    }

    #region IQueuedReports Members
    // TransactionScopeRequired=true because a transaction is required to receive
    // messages in a session from a transactional queue.
    //
    // TransactionScopeRequired to true to require this operation to execute within a
    // transaction scope. A transaction is created if one was not available. The
    // TransactionAutoComplete property indicates that if no unhandled exceptions
    // occur the transaction scope is completed automatically
    //
    // Because ProcessReport has the TransactionAutoComplete behaviour set to true,
    // each call to ProcessReport will run in a transaction that will commit when
    // the the service-side ProgressReport method finishes execution.
    [OperationBehavior(TransactionScopeRequired=true, TransactionAutoComplete=true)]
    public void ProcessReport(string strReportName)
    {
        try
        {
            string strID = OperationContext.Current.SessionId;
            Trace.WriteLine("Processing report: " + strReportName + " on thread " +
                            Thread.CurrentThread.ManagedThreadId + ". Thread pool = " +
                            Thread.CurrentThread.IsThreadPoolThread + ". Session = "
                            + (strID ?? "None"));

            if (strReportName.Contains("3"))
                throw new InvalidOperationException("Failed to process report " + strReportName);

            Trace.WriteLine("Finished processing report: " + strReportName + " on thread " +
                            Thread.CurrentThread.ManagedThreadId + ". Thread pool = " +
                            Thread.CurrentThread.IsThreadPoolThread);
        }
        catch (Exception ex)
        {
            Trace.WriteLine(ex.Message);
        }
           Trace.WriteLine("Exiting processing report: " + strReportName + " on thread " +
                            Thread.CurrentThread.ManagedThreadId + ". Thread pool = " +
                            Thread.CurrentThread.IsThreadPoolThread + "\n");
    }

    // Runs the method in a transaction but does not commit the transaction beause
    // TransactionAutoComplete is false (transaction must be committed by calling
    // FinishProcessBatchReport which has TransactionAutoComplete set to true)
    // Becuase of the above processing, all calls to ProcessBatchReport will sun in
    // the same session. And because ConcurrenyMode is set to Single, the dispatcher
    // enforces ordering on the incoming messages (a requirement of sessions), which
    // prevents subsequent messages from being read off the network until the service
    // has processed the preceding message for that session.
    [OperationBehavior(TransactionScopeRequired = true, TransactionAutoComplete = false)]
    public void ProcessBatchReport(string strReportName)
    {
        try
        {
            string strID = OperationContext.Current.SessionId;
            Trace.WriteLine("Processing report: " + strReportName + " on thread " +
            Thread.CurrentThread.ManagedThreadId + ". Thread pool = " +
            Thread.CurrentThread.IsThreadPoolThread + ". Session = " + (strID ?? "None"));

            Trace.WriteLine("Finished processing report: " + strReportName + " on thread " +
                            Thread.CurrentThread.ManagedThreadId + ". Thread pool = " +
                            Thread.CurrentThread.IsThreadPoolThread);
        }
        catch (Exception ex)
        {
            Trace.WriteLine(ex.Message);
        }
        Trace.WriteLine("Exiting processing report: " + strReportName + " on thread " +
                        Thread.CurrentThread.ManagedThreadId + ". Thread pool = " +
                        Thread.CurrentThread.IsThreadPoolThread + "\n");
    }

    // This method commits the transaction when it finishes execution because
    // TransactionAutoComplete is true
    [OperationBehavior(TransactionScopeRequired=true, TransactionAutoComplete=true)]
    public void FinishProcessBatchReport()
    {
        Trace.WriteLine("Finished processing batch report");
    }
    #endregion
}

// The following behviour: InstanceContextMode=InstanceContextMode.Single, and
// ConcurrencyMode=ConcurrencyMode.Single allows the service to process reports
// one-by-one and in-order
[ServiceBehavior(InstanceContextMode=InstanceContextMode.Single, ConcurrencyMode=ConcurrencyMode.Single )]
public class QueuedReportImplNT : Interfaces.IQueuedReportsNT
{
    public QueuedReportImplNT()
    {
        Trace.WriteLine("QueuedReportImplNT");
        if (OperationContext.Current != null)
        {
            string strID = OperationContext.Current.SessionId ?? "None";
            Trace.WriteLine("\nQueuedReportImpl constructor. ID: " + strID);
        }
    }

    #region IQueuedReports Members

    // A Non-transactional method
    public void ProcessReportNonTran(string strReportName)
    {
        try
        {
            string strID = OperationContext.Current.SessionId;
            Trace.WriteLine("Processing report: " + strReportName + " on thread " +
                            Thread.CurrentThread.ManagedThreadId + ". Thread pool = " +
                            Thread.CurrentThread.IsThreadPoolThread + ". Session = " + (strID ?? "None"));

            if (strReportName.Contains("3"))
                throw new InvalidOperationException("Failed to process report " + strReportName);

            Trace.WriteLine("Finished processing report: " + strReportName + " on thread " +
                            Thread.CurrentThread.ManagedThreadId + ". Thread pool = " +
                            Thread.CurrentThread.IsThreadPoolThread);
        }
        catch (Exception ex)
        {
            Trace.WriteLine(ex.Message);
        }
        Trace.WriteLine("Exiting processing report: " + strReportName + " on thread " +
                        Thread.CurrentThread.ManagedThreadId + ". Thread pool = " +
                        Thread.CurrentThread.IsThreadPoolThread + "\n");
    }
    #endregion
}

QueuedReportsHost Project

<?xml version="1.0" encoding="utf-8" ?>
<configuration>
    <appSettings>
        <!-- From MSDN, syntax for a private queue is 'MachineName\Private$\QueueName'
        and for a public queue is 'MachineName\QueueName'. In either case, you can use
        '.' to refer to the local machine name -->
        <add key="QName" value=".\private$\QueuedReports"/>
        <add key="QNameNT" value=".\private$\QueuedReportsNT"/>
    </appSettings>

    <!-- WCF Configuration -->
    <system.serviceModel>
        <services>
            <!-- Queued services. When defining an end point for a queued service, the endpoint
            address must contain the queue's name and the type of the queued (private or public).
            Recall that addressing of a queue in WCF is based on the following pattern:
            net.msmq: // <host-name> / [private/] <queue-name>
            Note that when specifying an endpoint address for private queues, you do not use
            'private$' as this syntax is specific to MSQM path names. Instead, use 'private'
            as shown below -->

            <!-- Service for transactional queue -->
            <service name="Implementation.QueuedReportImpl" >
                <endpoint address="net.msmq://localhost/private/QueuedReports"
                          binding="netMsmqBinding"
                          contract="Interfaces.IQueuedReports"
                          bindingConfiguration="NoSecurityBinding">
                </endpoint>
            </service>

            <!-- Service for non-Transaction queue -->
            <service name="Implementation.QueuedReportImplNT" >
                <endpoint address="net.msmq://localhost/private/QueuedReportsNT"
                          binding="netMsmqBinding"
                          contract="Interfaces.IQueuedReportsNT"
                          bindingConfiguration="NoSecurityBindingNT">
                </endpoint>
            </service>
        </services>

        <!-- See "MSMQ with WCF" on the Internet: The default configuration will try to
        authenticate you against the active directory and sign the message using a
        certificate stored in the active directory, neither of which is in place.
        The following disables MSMQ security. The same is also done in the client's
        config file -->
        <bindings>
            <netMsmqBinding>
                <binding name="NoSecurityBinding">
                    <security mode="None"></security>
                </binding>

                <binding name="NoSecurityBindingNT" exactlyOnce="false">
                    <security mode="None"></security>
                </binding>
            </netMsmqBinding>
        </bindings>

    </system.serviceModel>
</configuration>

class Program
{
    static void Main(string[] args)
    {
        // Setup MSMQ queue
        InitMSMQ();

        MyServiceHost.StartServices();

        // The service can now be accessed until user presses <return> to terminate the service
        Console.WriteLine("The service is ready");
        Console.WriteLine("Press <RETURN> to terminate the service");
        Console.ReadLine();

        // Terminate the service
        MyServiceHost.StopServices();
    }

    private static void InitMSMQ()
    {
        // Transactional queue: get private queue name and create it if necessary.
        // Note: second parameter to Create ensures that the queue is transactional
        string strQName = ConfigurationManager.AppSettings["QName"];
        if (!MessageQueue.Exists(strQName))
            MessageQueue.Create(strQName, true);

        // Non-transactional queue: get private queue name and create it if necessary.
        // Note: second parameter to Create ensures that the queue is non-transactional
        string strQNameNT = ConfigurationManager.AppSettings["QNameNT"];
        if (!MessageQueue.Exists(strQNameNT))
            MessageQueue.Create(strQNameNT, false);

        // Debugging: displays private queues at this machine. The Trace displays:
        // Queue name: private$\msmqtriggersnotifications
        // Queue name: private$\queuedreprots
        // Queue name: private$\queuedreprotsnt
        MessageQueue[] queuesPrivate = MessageQueue.GetPrivateQueuesByMachine(System.Environment.MachineName);
        foreach (MessageQueue mq in queuesPrivate)
        {
            Trace.WriteLine("Queue name: " + mq.QueueName);
        }
    }
}

internal class MyServiceHost
{
    internal static ServiceHost hostTranQ = null;
    internal static ServiceHost hostNTranQ = null;

    internal static void StartServices()
    {
        try
        {
            // Create a service host for the transactional queue
            hostTranQ = new ServiceHost(typeof(Implementation.QueuedReportImpl));
            hostTranQ.Open();
            DisplayInfo(hostTranQ); // Output some debugging information

            // Create a service host for the transactional queue
            hostNTranQ = new ServiceHost(typeof(Implementation.QueuedReportImplNT));
            hostNTranQ.Open();
            DisplayInfo(hostNTranQ); // Output some debugging information
        }
        catch (Exception ex)
        {
            Trace.WriteLine("Error starting services: " + ex.Message);
        }
    }

    internal static void StopServices()
    {
        // Call StopService from your shutdown logic (i.e. dispose method)
        Trace.WriteLine(" Transactional service state: " + hostTranQ.State.ToString());
        Trace.WriteLine(" Non-Transactional service state: " + hostNTranQ.State.ToString());

        if (hostTranQ.State != CommunicationState.Closed)
        {
            hostTranQ.Close();
            Trace.WriteLine(" Transactional Service closed!");
        }

        if (hostNTranQ.State != CommunicationState.Closed)
        {
            hostNTranQ.Close();
            Trace.WriteLine(" Non-Transactional Service closed!");
        }
    }

    internal static void DisplayInfo(ServiceHost host)
    {
        // Service description
        ServiceDescription description = host.Description;
        Trace.WriteLine("ServiceType: " + description.ServiceType.FullName);
        Trace.WriteLine("Behaviours count: " + description.Behaviors.Count);

        if (description.Endpoints.Count > 0)
        {
            foreach (ServiceEndpoint endpoint in description.Endpoints)
            {
                Trace.WriteLine("Address: " + endpoint.Address.ToString());
            }
        }
        else
        {
            Trace.WriteLine("ServiceEndpoints count: " + description.Endpoints.Count);
        }
    }
}

Client

<!-- This is the app.config for the client app -->
<configuration>
    <system.serviceModel>

        <!-- See "MSMQ with WCF" on the Internet: The default configuration will try to
        authenticate you against the active directory and sign the message using a
        certificate stored in the active directory, neither of which is in place.
        The following disables MSMQ security. The same is also done in the server's
        config file -->
        <bindings>
            <netMsmqBinding>
                <binding name="NoSecurityBinding">
                    <security mode="None"></security>
                </binding>
            </netMsmqBinding>
        </bindings>

        <client>
            <!-- Define NetMsmqEndpoint. Note that using a fully qualified contract
            name, i.e., Interfaces.IQueuedReports, produces a config file error! -->
            <endpoint name="Queue"
                      address="net.msmq://localhost/private/QueuedReports"
                      binding="netMsmqBinding"
                      contract="IQueuedReports"
                      bindingConfiguration="NoSecurityBinding">
            </endpoint>
        </client>
    </system.serviceModel>
</configuration>

public partial class Form1 : Form
{
    public Form1()
    {
        InitializeComponent();
    }

    private void button1_Click(object sender, EventArgs e)
    {
        try
        {
            using (TransactionScope scope = new TransactionScope())
            {
                QueuedReportsClient proxy = new QueuedReportsClient();
                proxy.ProcessReport("Report 1");

                // The session must be closed, otherwise, you get the following error: "Session
                // channels must be closed before the transaction is committed. The channel has
                // faulted and the transaction was rolled back.
                proxy.Close();

                // If an exception was thrown, Complete will not be called and the
                // transaction will be rolled back
                scope.Complete();
            }

            using (TransactionScope scope = new TransactionScope())
            {
                QueuedReportsClient proxy = new QueuedReportsClient();
                proxy.ProcessReport("Report 2");
                proxy.Close();

                // If an exception was thrown, Complete will not be called and the
                // transaction will be rolled back
                scope.Complete();
            }

            using (TransactionScope scope = new TransactionScope())
            {
                QueuedReportsClient proxy = new QueuedReportsClient();
                proxy.ProcessReport("Report 3");
                proxy.Close();

                // If an exception was thrown, Complete will not be called and the
                // transaction will be rolled back
                scope.Complete();
            }

            using (TransactionScope scope = new TransactionScope())
            {
                QueuedReportsClient proxy = new QueuedReportsClient();
                proxy.ProcessReport("Report 4");
                proxy.Close();

                // If an exception was thrown, Complete will not be called and the
                // transaction will be rolled back
                scope.Complete();
            }

            using (TransactionScope scope = new TransactionScope())
            {
                QueuedReportsClient proxy = new QueuedReportsClient();
                proxy.ProcessReport("Report 5");
                proxy.Close();

                // If an exception was thrown, Complete will not be called and the
                // transaction will be rolled back
                scope.Complete();
            }
        }
        catch (Exception ex)
        {
            Trace.WriteLine("OnRunTransactionalReport error: " + ex.Message);
        }
    }
}

Response Service

The programming model of queued calls described so far is one-sided. The client posts a message to the queue and the service processes that message (some time later on). In the most basic implementation, there is no way for the client to obtain results or even errors back from the service. This is because WCF equates queued calls with one-way calls, which by default does not return results or errors back to the caller. Not only this, but queued services are potentially disconnected - the client may post messages to the queues and then the client terminates.

One solution to the above is to have the service report back to a client-provided queue. In this case, the client will need to expose a service itself in order to accept queued calls from the client. This is called the 'Response Service'. In this scenario, the client and the service exchange roles when responses are required - service posts a message to the response queue, and the client will process it sometime later on.

The Response Service can share the client's process, or better yet it can be in a separate process from the client to further decouple the lifetime of the response service from the client. This isolation is especially helpful if there will be many clients. The Response Service can be even divided into two services - one for results and another for errors.

There are two problems to be aware of:

  1. If the client submits multiple requests to the queued service, how does the client distinguish between the responses it gets back? For example, how does the client know that the response it has just received is really for the nth request and not for any other request?


  2. How does the queued service discover the address of the response service? i.e., how does the queued service know where the response should be sent? There could be many clients sending requests to the queued service, and the queued service must know where to send back its responses.

One solution to problem 1 would be for the client to send some ID, i.e., a GUID for each request. The queued service will pass this ID back to the response service so that it could apply some logic to identify the request relating to the given ID. As for problem 2, the client could also pass its address with each request. Interfaces would then look like this:

[ServiceContract]
interface IOrder
{
    [OperationContract(IsOneWay=true)]
    PlaceOrder( Order order, string strResponseAddress, GUID idOrder)
}

[ServiceContract]
interface IOrderResponse
{
    [OperationContract(IsOneWay=true)]
    PlaceOrderResponse( bool bStatus, ExceptionDetail error, GUID idOrder)
}

Using Message Headers

Passing the response address and the ID would work, but it would pollute the original contract. A better solution is to have the client store the response address and operation ID in the outgoing message header of the call. This is an ideal use of message headers to pass out-of-band information to the service.

The .NET Framework offers the OperationContext class which is used to provide access to the execution context of a service method. It is ideal for accessing incoming message headers and properties as well as add outgoing message headers and properties.

To pass response service address and request ID, you would typically create a helper class to manage these fields. The client is responsible for constructing an instance of this class with a unique ID. While the client can supply that ID as a construction parameter, the client could also use the constructor, which takes just the response address, and have that constructor generate a GUID for the ID. The important property of this class is the static Current property. It completely encapsulates the interaction with the message headers. By accessing the Current property you have a nice programming model: the get accessor reads from the incoming message headers the instance of ResponseContext, and the set accessor stores in the outgoing headers an instance of a ResponseContext.

Example 2

<TODO>
